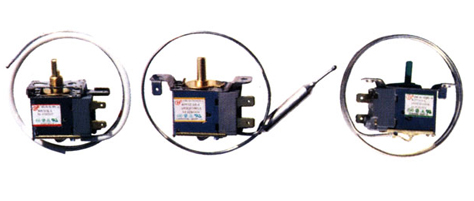

WPF series
 | |
| It is widely used for refrigerator,freezer Specfication: 1)designed temperature range:-36~+15 2)on-off temperature difference:5~14 3)adjustable temperature range:max25 4)rated at 6A/250V 50/60HZ 5)the center of installing hole:55±0.25mm or 15.3mm+0.5mm 6)operating life:no less than 200,000times 7)manufactured on customer request |
| Type | Action Temperature （℃ ） | Max Temp of Sensor （℃ ） | Capillary tube (mm) | Puffing type | |||||||
| Forced OFF | W | N | C | P.D | |||||||
| ON | OFF | ON | OFF | ON | OFF | OFF | |||||
| WPF24G-L | --- | (6.5) | 2 ± 2 | --- | --- | -18 ± 1.5 | -2 4 ± 1.5 | <-29.5 | 80 | 600 | GAS |
| WPF27A-L | Yes | -11 ± 2 | --- | -17 ± 1.5 | -23 ± 1.5 | --- | - 28 ± 2 | --- | 80 | 843 | GAS |
| WPF27A-LQ | --- | 6 ± 3 | 1 ± 3 | (-11 ) | (-18 ) | -20.5 ± 2.5 | -27.5 ± 2.5 | <-36 | 80 | 850 | GAS |
| WPF12.5A-L | --- | (4.5) | 0.5 ± 2 | -2.5 ± 1.5 | -6.5 ± 1.5 | (- 8.5 ) | -12.5 ± 2 | --- | 55 | 283 | Carbon |
| WPF16A-L | Yes | 3.8 ± 2 | - 6 ± 2 | -2 ± 1.5 | -1 2.5 ± 1.5 | -5 | -16 ± 2 | <-20 | 80 | 733 | GAS |
| WPF26H-L | --- | (-13) | (-16.5 ) | -17 ± 1.5 | - 21 ± 1.5 | (-21.5) | (- 26) | --- | 80 | 433 | GAS |
