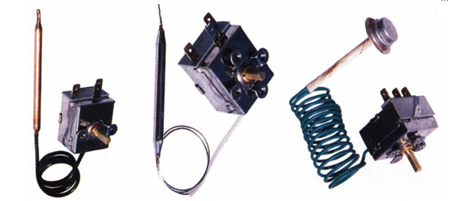

WY-F expansive series(hign temperature type)
 | |
| It is widely used for electric water heater,washer,electric oven,fried pan,water boiler Specfication: 1)designed temperature range:30~300 2)on-off temperature difference:2~15 3)rated at 15A/250V 50/60HZ 4)the center of installing hole:28±0.25mm 5)operating life:no less than 100,000times 6)manufactured on customer request |
| Type | Action Temperature （℃ ） | Switch Type | Max Temp of Sensor （℃ ） | Capillary tube (mm) | Puffing type | |||
| High Temp | Low Temp | |||||||
| OFF | DIFF | OFF | DIFF | |||||
| WY35A-F | 35 ± 4 | 5 ± 4 | (-35±4) | 5 ± 4 | SPDT | 80 | 500 | Liquid |
| WY75C-F | 75 ± 4 | 5 ± 4 | 30 ± 5 | 5 ± 4 | SPST | 120 | 500 | Liquid |
| WY87C-F | 87 ± 4 | 5 ± 4 | 35 ± 5 | 5 ± 4 | SPDT | 120 | 1700 | Liquid |
| WY120A-F | 120± 6 | 8 ± 4 | 30 ± 8 | 8 ± 4 | SPDT | 150 | 1200 | Liquid |
| WY200C-F | 200± 8 | 10 ± 5 | 60± 10 | 10 ± 5 | SPST | 250 | 1100 | Liquid |
| WY340B-F | 340±12 | 10 ± 8 | 60±15 | 10 ± 8 | SPDT | 400 | 800 | Liquid |
